I came across this question about "How to deploy a web app within a sub folder on Azure" in Stackoverflow many times. Even though there is an official documentation, this question has not been addressed in general. With Virtual Directories, You could keep your web sites in separate folders and use the ‘virtual directories and applications’ settings in Azure to publish the two different projects under the same site.

However, say if you have an ASP.NET Core/Angular app to a sub-folder inside Azure Web App (App Service), and wanted to deploy on Azure inside a sub-folder. You can simply navigate to Azure portal -> Select the Web App -> Overview

• Download the publish profile
• Import in Visual Studio
• Edit the web-deploy profile(Normally the publish profile will have Web Deploy as well as FTP profile)
  • Change Site Name from your-site to your-site\folder\sub-folder
  • Change the Destination URL from http://your-site.azurewebsites.net to http://your-site.azurewebsites.net/folder/sub-folder
• Publish

You should be getting an error as follows,

System.TypeLoadException: Method ‘get_Settings’ in type ‘Microsoft.Web.LibraryManager.Build.HostInteraction’ from assembly ‘Microsoft.Web.LibraryManager.Build

You can resolve the above issue by updating the nuget package named Microsoft.Web.LibraryManager.Build in your project.

One other thing that you should be aware is that, Go to portal > demo-site App Service > Configuration > Path Mappings > Virtual applications and directories. And add the following,

Now publish from Visual Studio. If you only need to publish to a first level folder, i.e to your-site\folder, then all you have to do is, change the Type to Application in the Path mappings for /folder, and skip the sub-folder entry since you don’t need it. And correct the Site Name and Destination URL in the publish profile accordingly.

Hope there will be no more questions on the same. Happy Coding!

The first ever Github Universe viewing party in SriLanka took place on last Thursday organized by the Github Campus Experts in the country. It was an event to share all the exciting news and updates on Github and it was a great success. I decided to write this blog based on the session i presented on “Github Actions”. It’s amazing to see the new features announced by the Github over the span of last 12 months out of which Github actions was the latest one and it was made generally available on  few days ago (November 13, 2019) to build CI/CD pipelines from GitHub itself. I was excited about this announcement and tested it with two of my projects and I have to say I’m impressed.

As a example, in this post I will explain about how to build a “Emotion detection app” with angular and deploy it on one of the public cloud(Azure) with Github Actions. Below is the simple architecture diagram to get an understanding on how I am going to leverage Github action to deploy my Angular application to the Cloud. Here is the simple architecture of the application that i have demonstrated.

PreRequisities:​

• Github Account
• Azure Account ( Use your $200 Azure Credit)
• Visual Studio Code

Step 1 : Create the Resource group On Azure :​

As the first step, we need to create the AppService on Azure to Deploy the Angular application.Navigate to https://portal.azure.com/ and you will be directed to the home page on the portal. Let’s create a resource group to group the resources we create.

Step 2: Create the App service to deploy the Angular app.​

As the second step, create an app service to deploy the Angular application

Step 3: Create the Cognitive Service​

Create Cognitive service to integrate the emotion detection part. We will use detect api to detect the attributes in a picture.

If you want to store the data , you can create a new cosmosdb to store the results which i have not included here.

Step 4: Code the Angular App​

You need to create the component to upload a file and pass the file to the cognitive service to detect the attributes and use ngFor on the template to display the results.

Get the keys of the cognitive service and the url from the portal as follow

You can access the whole code from here. Make sure to replace the Ocp-Apim-Subscription-Key and the url according to the endpoint you created above.

makeRequest() {
    let data, contentType;
    if (typeof this.image === 'string' && !this.image.startsWith('data')) {
      data = { url: this.image };
      contentType = 'application/json';
    } else {
      data = this.fileToUpload;
      contentType = 'application/octet-stream';
    }

    const httpOptions = {
      headers: new HttpHeaders({
        'Content-Type': contentType,
        'Ocp-Apim-Subscription-Key': 'eb491c17bd874d2f9d410eedde346366'
      })
    };

    this.http
      .post(
        'https://eastus.api.cognitive.microsoft.com/face/v1.0/detect?returnFaceId=true&returnFaceLandmarks=false&returnFaceAttributes=emotion',
        data,
        httpOptions
      )
      .subscribe(body => {
        if (body && body[0]) {
          console.log(body);
          this.output = body;
          this.thing = body[0].faceAttributes.emotion;
          this.result = this.getTop();
          this.noFace = false;
        } else {
          this.noFace = true;
        }
      });
  }

Step 5: Push the Code to Github​

You can push the code to your own repository on GitHub and let’s create the build and deploy pipeline via the GitHub actions. Navigate to your repository and click on Actions

Step 6: Create Github Action with Workflow​

Create a new workflow by clicking on the new workflow. You will get to see different templates by default to build the pipeline according to the application language as below

In this case, I will create my own workflow by clicking on the setup workflow for yourself. Name the workflow as angular.yaml. You can see a new file being generated under your repository as github_action_angular/.github/workflows/azure.yml

name: Deploy to Azure
on:
  push:
    branches:
      - master
env:
  AZURE_WEBAPP_NAME: github-actions-spa
  AZURE_WEBAPP_PACKAGE_PATH: './dist/angulargithubaction'
  NODE_VERSION: '10.x'

jobs:
  build-and-deploy:
    runs-on: ubuntu-latest
    steps:
    - name: Checkout
      uses: actions/checkout@master
    - name: Use Node.js ${{ env.NODE_VERSION }}
      uses: actions/setup-node@v1
      with:
        node-version: ${{ env.NODE_VERSION }}
    - name: Install dependencies
      run: npm install
    - name: Build
      run: npm run build -- --prod
    - name: 'Deploy to Azure WebApp'
      uses: azure/webapps-deploy@v1
      with:
        app-name: ${{ env.AZURE_WEBAPP_NAME }}
        publish-profile: ${{ secrets.AZURE_WEBAPP_PUBLISH_PROFILE }}
        package: ${{ env.AZURE_WEBAPP_PACKAGE_PATH }}

The workflow is really simple. As you see it includes a name and few actions starting with when you need to do the build and deploy. Buildon: push indicates that whenever there is a new commit the code needs to be built again. Also you have to define NodeJS version and will run our build on ubuntu server. And you have a few regular steps that we usually do with building angular application if we are familiar with Angular apps development.

Also as an option you  run that configuration only for branches other than master. For master branch we have separate configuration (with deployment to Azure). So it is flexible to maintain different workflows to different branches/environments. Is not that cool?

Step 7: Configure the Pipeline,Secrets​

As the next step you need to create in GitHub Secrets page new secrets. It’s important to save the secret name whenever you need to deploy to production/development using secrets is one of the best practice. You can get the the keys from the publish profile of the app service.

Create new secret as above with the values got from profile.

  We have to configure the values in angular.yaml as follows:

• app-name — application name in Azure
• publish-profie — name of the secret from GitHub
• package — path to directory which we would like to deploy (in above example: ./dist/yourSPAApp.

And that’s it. Really clear and simple! You can just check if the deployment has been successful or not by navigating to the Kudu.

And you can see the application working successfully on Azure. As the next step you can include unit tests to run when you do the build. Using the Angular CLI and Github Actions, it has become very easy to create and test frontend Web apps. Check out the fulling working demo repo below as well as the current build status for the demo!.

Start using Github Action and deploy your app within few seconds. You can use Github actions to deploy any application to any cloud as i've explained above.

You can access the Session Slides from here and the repository from here.

I was at the Global Azure Bootcamp recently concluded last week, one of the participant came and asked me, "Hey what is Cosmos DB" I casually responded “Well, that’s Microsoft’s globally distributed, massively scalable, horizontally partitioned, low latency, fully indexed, multi-model NoSQL database". The immediate question came after that was whether it supports hybrid applications. In this blog I will be explaining how to leverage the features of cosmos db when you're building hybrid applications.

Ionic framework is an open source library of mobile-optimized components in JavaScript, HTML, and CSS. It provides developers with tools for building robust and optimized hybrid apps which works on Android,IOS and web.  Ionic comes with very native-styled mobile UI elements and layouts that you’d get with a native SDK on iOS or Android.

Let's see how to build Hybrid application with Ionic and Cosmosdb

PreRequisites:​

You need to have npm and node installed on your machine to get started with Ionic.

Step 1: Make sure you've installed ionic in your machine with the following command,

ionic -v

Step 2: Install Ionic globally

if it's not installed, install it by using the command

npm i -g ionic

Step 3: Create a new ionic project

Ionic start is a command to create a new ionic project. You pass in the directory name to create, and the template to use. The template can be a built-in one (tabs, blank) or can point to a GitHub URL.

The aim is to create a simple ToDo application which displays lists of tasks, and user should be able to add new tasks.

Lets create a blank project with the command

 ionic start cosmosdbApp tabs

You will see a new project getting created.

Step 4: Run the ionic app

You can run the app with a simple command by navigating to the folder and then run

Ionic serve

This starts a local web server and opens your browser at the URL, showing the Ionic app in your desktop browser. Remember, ionic is just HTML, CSS and JavaScript!

It will open the application in the default browser with the default app.

If you're stuck at any point you can refer to my slides on How to get started with Ionic and follow the steps.

https://slides.com/sajeetharansinnathurai/ionicnsbm#/10

Step 5: Create the cosmosdb account on azure portal,

We need to create an cosmosdb account and use the Endpoint and SecretKey in our application. You can follow the

Blog on how to create it from the azure portal

https://sajeetharan.wordpress.com/2018/03/26/wear-out-the-features-of-azure-cosmosdb-with-aspnetcore-application/

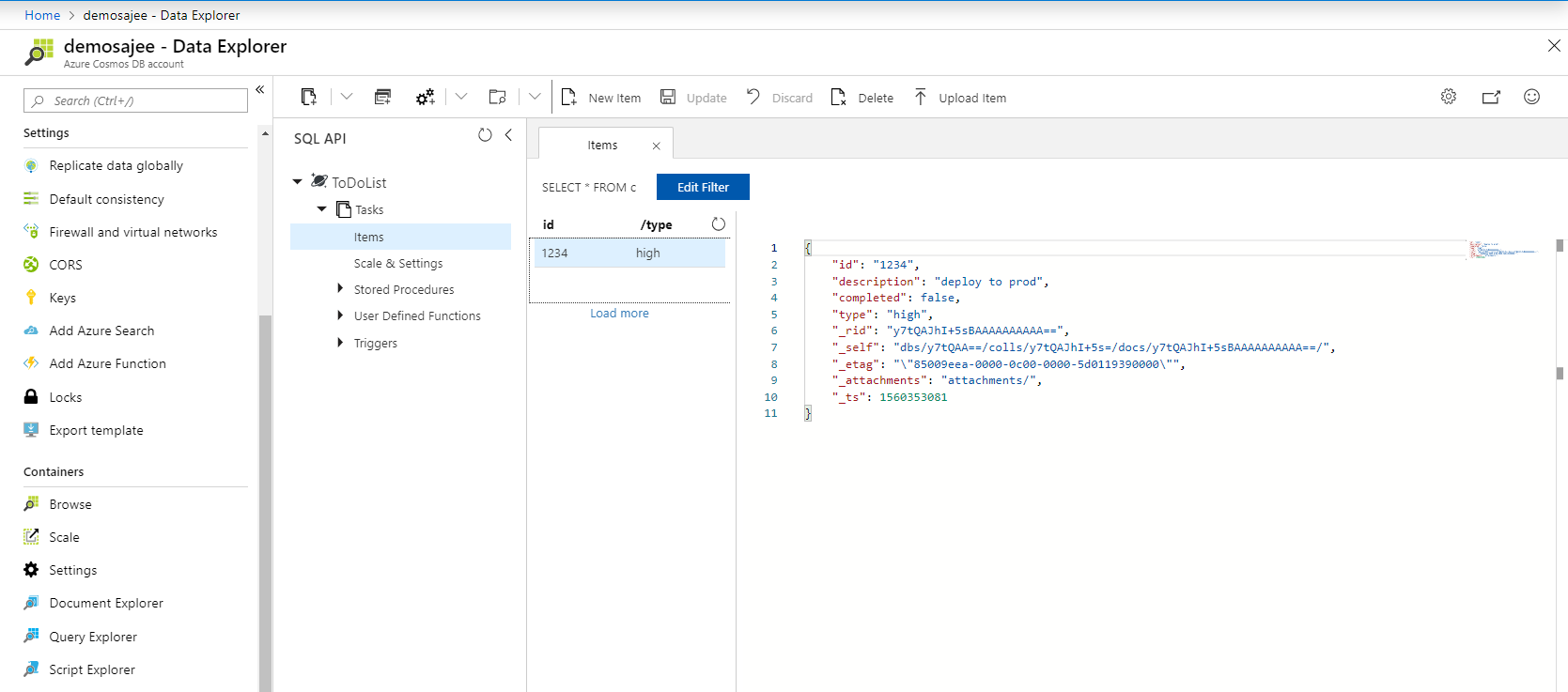

Create a database named "ToDoList" and containeras "Items".

Once created, lets go back to the application.

Step 6: Lets add Cosmosdb SDK to the project

To consume the Cosmosdb service in the application we need to add the Azure Cosmos Javascript SDK to the project. This can be done with the command

npm i @azure/cosmos

Step 7:  You need to create an interface/model which will be used to save/retrieve the objects from the cosmosdb

https://gist.github.com/sajeetharan/a1dff67c87dce10bc2220aa0e9c550c3

Step 8: You need to add two pages home and todo page , home to display the lists of items inside the containerand todo page to add a new item. These two pages can be generated insdie the module with the command,

ionic g page home

Ionic g page todo

https://gist.github.com/sajeetharan/85229d091990d149b9c09d71f3387287

Step 9: We need to add a service to embed the logic to communicate with the cosmosdb you can create a new service inside the module as,

ionic g service cosmos

https://gist.github.com/sajeetharan/d7336abce15fa4d10ffd9d806b819462

As we need to make use of the available methods inside the @azure/cosmos You can import cosmos with the line,

import * as Cosmos from "@azure/cosmos";

Now make use of all the available functions in the SDK to add,delete,update items in the cosmosdb.

Step 8: To make application compatible with android/ios , run the following command,

Ionic cordova build ios/android

If you want to make the development faster, you could try building your ionic application with capacitor as well.

Now your hybrid application uses cosmosdb as a backend, with this demo you know how to use cosmosdb as a database for your hybrid application. I hope you should be able to create more applications in the future with cosmosdb and ionic.

You can check the demo application source code from here.

This is going to be a very small blog post, but indeed it will be helpful for lot of Angular developers out there. One of the recent question i answered on Stack overflow on how to reverse engineer an Angular application.

The question was " I built an Angular app using ng build. I have the built version but I accidently deleted my code. Is there any way I can get my code back from my build version? "

Even though the correct answer is NO, but you will be able to retrieve 80% of the code with the following steps.

Step 1: Deploy the app code in the Dist folder

Step 2: Use Google Chrome Developer tools (F12).

Step 3: Under debugger tab, look under Webpack -> Src you will see all typescript files. you can copy and past the code provided which would help you to at least build the structure of your application.

The wait is over and Angular 7 is out, finally time has come to write about some tips to build fast angular application. In this blog i will share my experience with practices that you need to follow when you are starting a new project.

There are three primary things important when you are starting to build an application with Angular.

1. Project Architecture
2. Application Infrastructure
3. Conventions,Formating and Tooling

CONVENTIONS,FORMATTING AND TOOLING​

• Always place the Angular application outside your backend code​

Keep the application in its own repository so that can be deployed/version separately. It will also help in tooling. One key rule is to treat it as a real application.

• Use VS Code for best experience​

Encourage your team to switch to VS Code which has immense support for development with Angular. It has strong support for extensions used in Angular projects and well-regarded by front end community.

• Use Tooling​

It will kill all the disagreements. Use VSCode extensions such as TSLint, Angular Language ervice, Prettier, EditorConfig and SCSS intellisence.

• Naming and Syntax Conventions​

Always use Singular for Modules and Singular or Plural for  components/ services/ directives and pipes

• Use Angular style commit messages​

Examples :

'feat(notification.service): add display param'

'refactor(order models): rename couponId to couponCodeId

• Use Codelyzer to do statistical analysis on Angular/Typescript code​

It's a set of tslint rules for static code analysis of Angular TypeScript projects. If you are doing continuous deployment configure with your pipeline.

• Follow consistent structure​

If you are using Angular-Cli always follow the same pattern to generate the necessary files so that it will be consistent throughout the application.

• Absolute path for ES Modules​

Always use absolute path that would help in refactoring(moving files around or renaming) and very easy to organize files.

• Do not use null and assign default values​

In the templates always use safe navigation type operator which can help in preventing the following annoying errors "cannot read property "name" of undefined"

• Choose Intelligent defaults and be consistent​

'' for string - declare string with default value ""

0 for number - declare number with default value 0**[]** for arrays - declare array with default value []

• Build small reusable components​

Don't make your component code go more than 300 lines. Split the pieces that can be reused in a component and make them as a new component. The component should be made as dumb as possible. It should not dependent on any inputs or outputs provided, it should work simple. General rule of thumb is to make the last child in the component tree to be the dumbest. Reusable components reduce the duplication of code and you can make changes easily.

Components should deal only with the presentation logic Don't have logic other than the presentation logic. Components are designed for presentational purposes and only should focus on what the view should do. Business logics should be separated out to services/methods from the presentation/view logic.

• Use trackBy in ngFor Loops​

DOM manipulations are always expensive, immutable practices always generate a new collection which will result in bad performance. When your array changes, Angular will be rendering the whole DOM tree, when you use trackBy, it will know which elements has changed and will make changes only to those particular elements.

• const vs let​

Make use of let and const wherever its appropriate. It will help a lot in identifying issues when a value is reassigned to a constant accidentally with a compile error and it improves the readability of the code.

• Pipable Operators​

With Angular version above 5.5 , you can use pipeable operators which are tree-shakable (only the code need to execute will be included when they are imported) and it will be easy to identify unused code in the component files.

• Subscribe in template​

Rather than subscribe in service or async popes unsubscribe themself automatically it will make the code simpler by stopping the need to manually manage subscriptions which could cause a memory leak. When using subscribe, the risks can be eliminated by using a lint rule to detect unsubscribed observables.

• Clean up subscriptions​

When you subscribe in the component to observables, make sure you unsubscribe from them completely with operators like take,takeUntil,Unsubscribe etc

• Use appropriate Operators​

switchMap: when you want to ignore the previous emissions when there is a new emission mergeMap: when you want to concurrently handle all the emissions

concatMap: when you want to handle the emissions one after the other as they are emitted

exhaustMap: when you want to cancel all the new emissions while processing a previous emisssion

• Stop using any:type everything in the code​

Always declare variables or constants with a type other than any. This is the advantage that you have with Typescript when you have good typings in your application which makes refactoring easier and safe and also avoid unintented issues.

• Use lint rules as you need​

TSLINT has various options built-in already like no-any, no-magic-numbers, no-console, etc that you can configure in your tslint.json to enforce certain rules in your code base

• Dont Repeat Yourself​

One of the common mistake that i did as a developer was copy paste the same code in all components. Do not repeat or have the same code in different places in the code base. Extract the repeating code and make them as a generic method which could be used in different components.

• Avoid Logic in component templates​

Place the logic in the component file rather than on the template such as && condition since it cannot be possible to unit test also it is prone to more bugs when changing template code

APPLICATION INFRASTRUCTURE​

• Lazy load everything​

When you are building application with large number of modules always do lazy loading which could improve your application performance by large margin. Angular CLI makes this easy and helps break up your app into logical bundles. With Lazy loading users only pay for what they want. For example, Sensitive (admin only) code will not be downloaded for users that don't have access.

• Analyze your bundle​

If you are using any bundling mechanism always analyze the size of the bundle generated. You can use webpack-bundle-analyzer for example and you can improve the performance there on.

Install source map explorer

• npm install -g source-map-explorer

Build with source map

• ng build --prod -sm

Inspect your bundle

• source-map-explorer dist/vendor*.js

• Use Debug.Service.ts to track errors​

It is always good to have a common debug service to assist with the development. This service could replace the calls to console.log.  You can use Visual studio extension codelensto track down the calls with console.log.This service can be toggled at run time with local storage value and needs to be switched off with production builds.

• RXJS Operators​

When using it becomes handy to handle so many operations with Rxjs operators. Always remember to include/import only the things you need. Also make sure to add noUnusedLocals in the tsconfig.

• Use ES Modules for helper functions​

With ES Modules it is really easy to import only available when thy are needed.

• Keep environment values in environment files​

It becomes really easy and very helpful to manage environment values when it comes to continuous improvement and continuous deployment.

• Avoid Base classes / Inheritance​

Even though Angular is build with Typescript, many of the developers tend to use services from a base class. This should be only if necessary. It will result in restricting the flexibility as when your app grows and use cases changes.

Also create a utility.services.ts to contain all the base helper services. For ex: debug.service.ts , notification.service.ts  session.service.ts can be placed within utility.service.ts which helps in preventing app wide changes to base constructor.

• Use Obseravable/State Management Patterns​

It is really important to follow Redux patern (RxJS) to have a better state management in application. Also in components use ngUnsubscribefor complex Observable management in Components. Use shareReplayoperator and/or async pipe for simpler cases

• More things to consider on Application​

Always consider browser caching and application versioning. Test the update process and the experience across browsers. Always figure out user experience and continuously work on it. Use global error handler to store report errors to API and do not access Document or Window Objects manually.

PROJECT ARCHITECTURE​

• One of the primary thing that you need to consider before starting a project is the architecture on how to build flexible,simple,fast application. It needs lot of planning and consistency to get the basement correct. Building things is really hard enough. When it comes to building Angular application i would recommend to follow the following Guidelines
• One best place to start with good practices is by following the recommended style guide. You need to take what works for your team and skip what does not work. Also try to learn from others mistakes or any other projects that you've already worked with.
• While designing module,s it is really important to know about how to structure your modules and what should go under Feature/Core/Shared Modules.

• Keep a flat file structure as long as possible which means you should not add hierarchy with less than 20 files and you can always move files as the app grows larger.
• Maintain your application version using the package.json which could be embedded in your app.
• Use package management tooling to guarantee reproducible dev environment and builds.
• Set custom host for the application by changing the default url.
• Use proxies if you are integrating with an API.
• Lets look at what you can do while implementing the above architecture in your application

Follow this repository in order to get started

The above are the some of the most important practices that you need to follow when you are starting a  new project with Angular. Hope this helps someone out there.
